Barium‑line embedded tube wall (multi‑line imaging) technology
Release time: 2026-09-02
Barium‑line embedded tube wall (multi‑line imaging) technology
——Delivering accurate and reliable visualization
for gastrointestinal feeding tube placement
for gastrointestinal feeding tube placement
Barium Sulfate Strip Technology
Barium-line nasogastric tube technology, with its bowel wall-embedded barium sulfate strips, is an advanced radiopaque marking solution purpose-built for X-ray-detectable medical catheters.During the extrusion process, multiple continuous filament-like strands of X-ray contrast medium are embedded parallel to the catheter’s longitudinal axis within the polymer wall — creating a clear, stable in-vivo radiographic identification system.
Technical Definition
An advanced radiopaque marking solution for X-ray-detectable medical catheters. During extrusion, multiple (2–3) continuous strands of contrast medium—barium sulfate or bismuth trioxide—are embedded parallel to the longitudinal axis within the polymer wall, creating a clear in-vivo radiographic identification system. Designed specifically for nasogastric and nasoenteric tubes, it provides reliable visual guidance for placement and maintenance.
Clinical Pain Points & Design Value
Misplacement (airway intubation) and kinking/coiling are the leading causes of placement failure and aspiration pneumonia. Traditional single-stripe designs cannot simultaneously address positioning accuracy and stress distribution. Symmetrical multi-strip embedding delivers three core benefits:
01
Prevents heat-induced deformation
Single stripes cause uneven thermal expansion. Symmetrical multi-strip layout counterbalances stress, preserving straightness and stability.
02
Enables instant twist detection
Under fluoroscopy, multiple parallel stripes produce a zebra-like pattern. Clinicians can spot kinks, loops, or torsion in real time.
03
High-definition tip positioning
High-density contrast strips ensure sharp X-ray outlines, helping confirm gastric placement or transpyloric passage into the jejunum.
Tube Cross-Section
Multi-stripe layout visualized in single, double, and triple configurations.
Single
Basic radiopaque marking
Double
Enhanced visibility & balance
Triple
Maximum clarity & stress symmetry
Clinical Application Scenarios
Real-world clinical use cases for multi-line radiopaque technology.
Scenario 1
ICU bedside placement
Portable X-ray quickly verifies tip location, distinguishing gastric from intestinal placement. This accelerates early enteral nutrition initiation and avoids delays from repeated imaging.
Scenario 2
Intraoperative / post-procedural monitoring
Patient repositioning during surgery can compress or kink the tube. Real-time radiographic morphology helps the care team detect and correct abnormal bending or looping immediately.

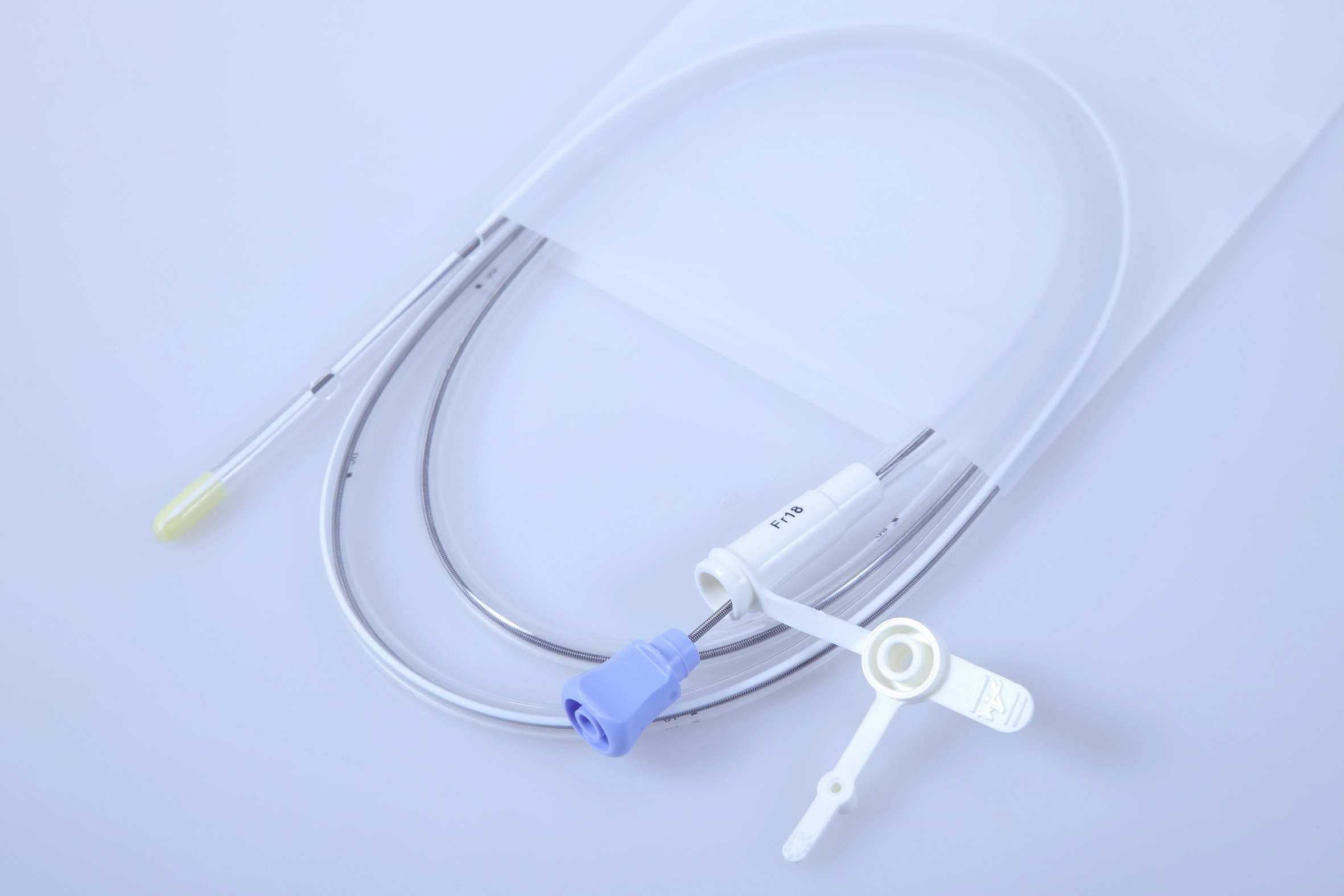

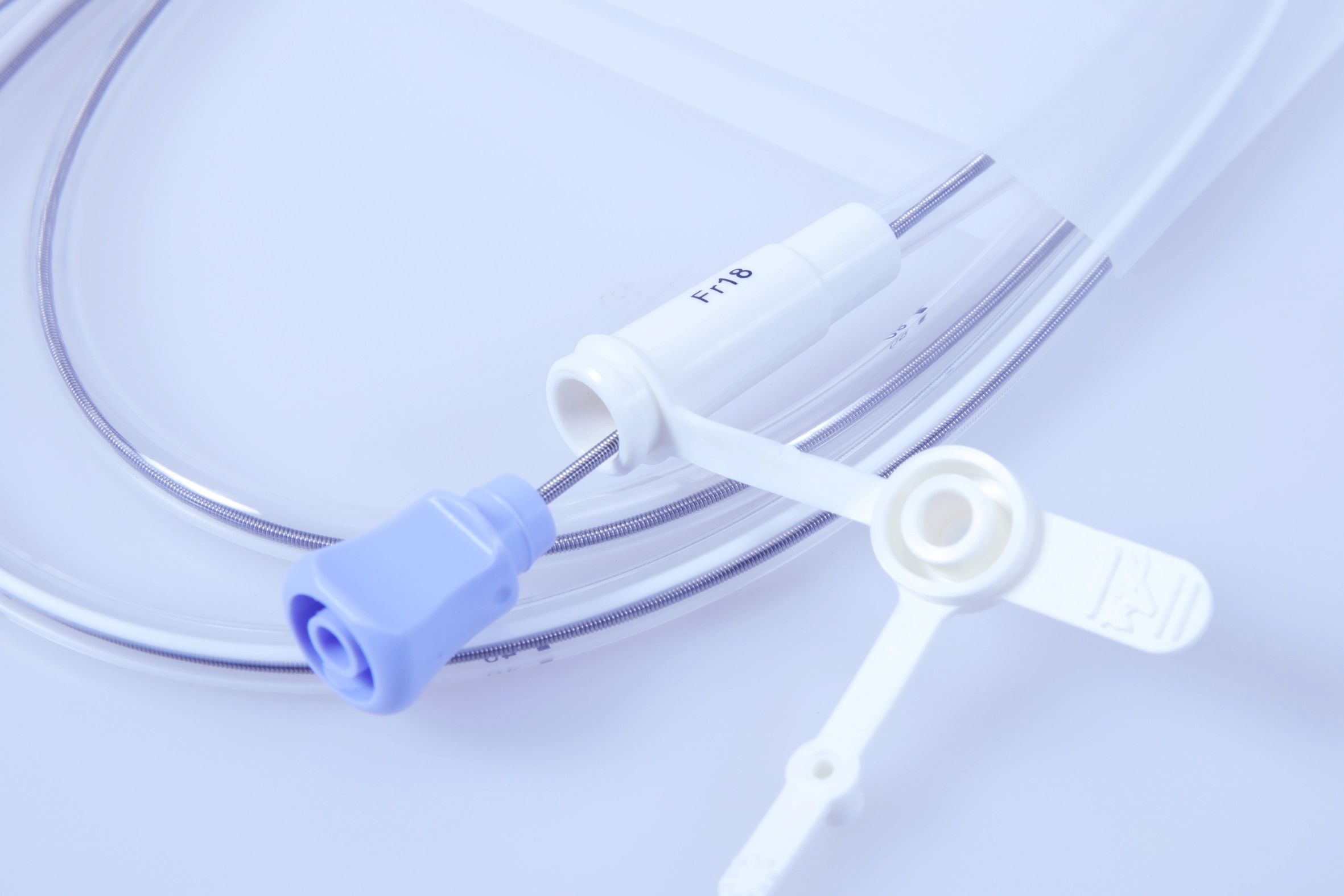

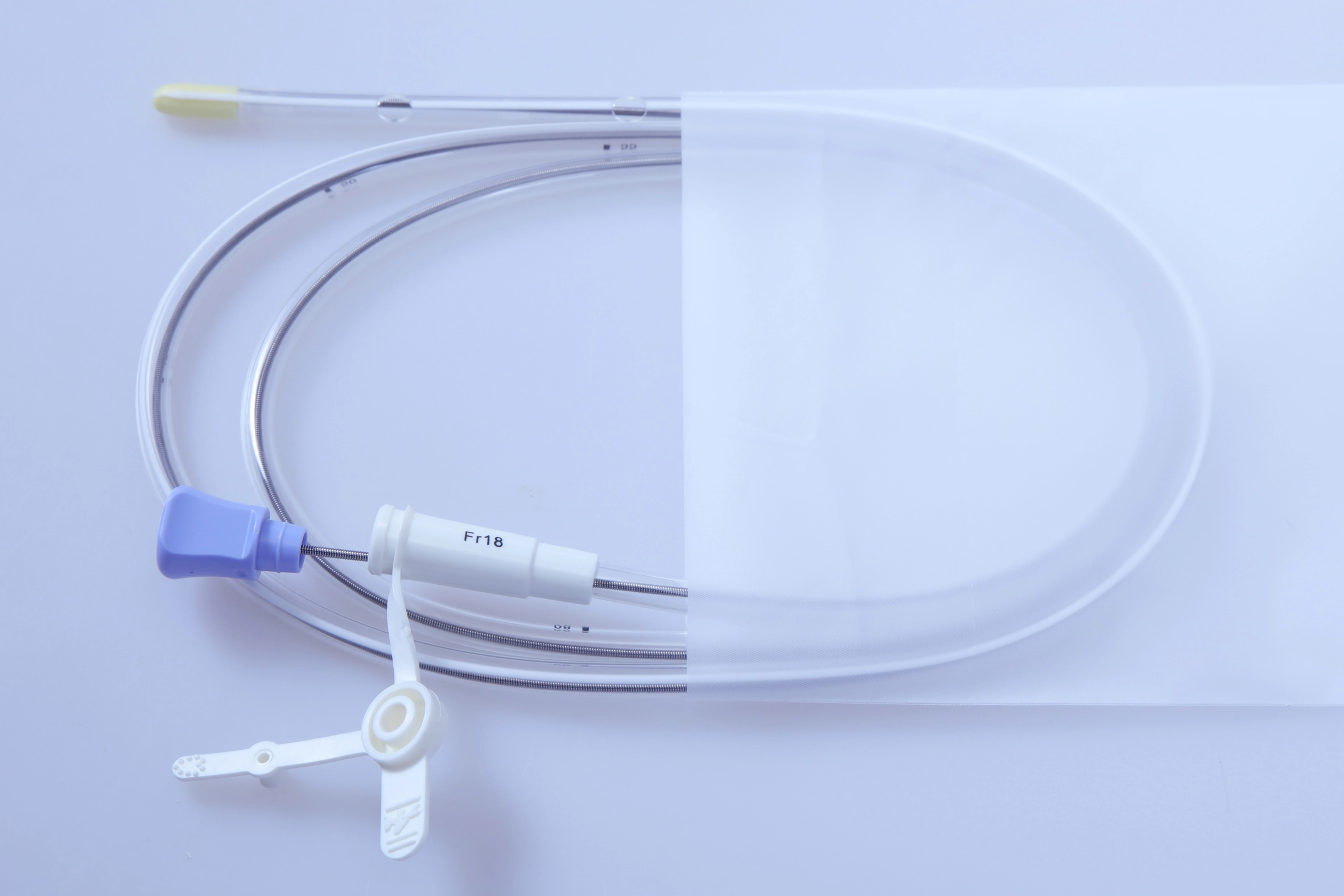

Our Manufacturing Solution
Translating these clinical benefits into stable, repeatable production volumes demands extreme process discipline:
⚙️ High-precision co-extrusion tooling
Custom precision dies evenly embed contrast agent at up to 50% loading.
Custom precision co-extrusion dies enable accurate filamentary extrusion of contrast material loaded at 50% barium sulfate by weight.This ensures uniform stripe distribution and consistent radiopacity across every catheter.
Click to expand →
🧪 Optimized material rheology matching
Formulation adjustments enable high-filled composites to flow synchronously.
Through proprietary formulation adjustments and process parameter fine-tuning, we overcame the poor flowability inherent to high-barium-content compounds.The result: seamless integration with zero risk of stripe breakage or material starvation.
Click to expand →
📐 Strict symmetry & concentricity control
Online monitoring guarantees perfect circumferential distribution.
In-line concentricity monitoring systems continuously verify circumferential symmetry of the multiple stripes.This precisely balances thermal stresses during processing — guaranteeing uniform outer diameter, stable geometry, and long-term resistance to deformation or warping.
Click to expand →
Bowel wall-embedded barium sulfate strip (multi-line radiopaque) technology is more than a process innovation — it is a deep-seated commitment to the safety, precision, and reliability of gastrointestinal feeding catheters. From compound formulation to die design, from co-extrusion to in-process monitoring, every step is held to the highest standard — delivering a trustworthy access solution for clinical teams and patients alike.
✦ Clear positioning. Precise delivery. Safe access.
